Hinowa Lightlift 20.10 20.15m Spider Boom Lift Hire

  • 18.15m Maximum Platform Height
  • 20.15m Maximum Working Height
  • 9.70m Horizontal Reach
  • 360° Jib Rotation
  • 0.79m Travel Width
  • White Diesel Only
  • Save 20% on Average UK Price
  • Hire for DIY or Trade

  Low Cost Delivery: Nationwide

  5 hired in the last 24 hours

  Insurance Available

  Deposit Required

  Online ID Verification Required

Why Hire from National Tool Hire?

DIY & Trade

24 HOURS
£1,327.66
£1,065.26
48 HOURS
£1,379.39
£1,106.76
FRI - MON
£1,517.33
£1,217.44
WEEKLY
£1,724.24
£1,383.45
Visa
Mastercard
Apple Pay
Google Pay
PayPal

Please note: All consumables are non-refundable. These are purchased items, not hired

  • Hinowa Lightlift 20.10 Spider Boom Lift Hire

    20.15m Diesel or Electric Tracked Spider

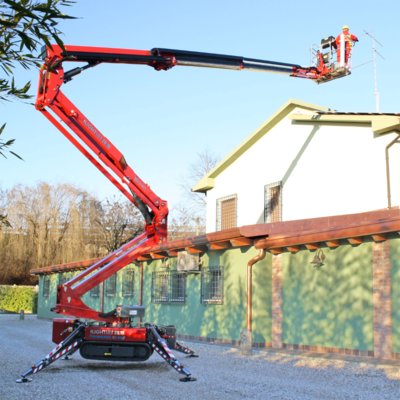

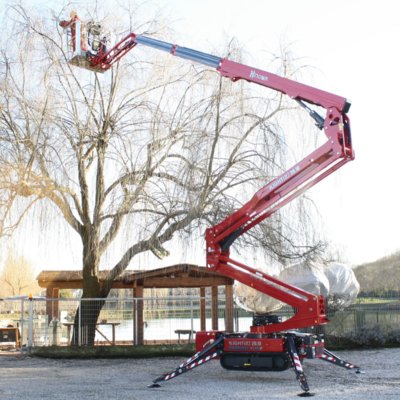

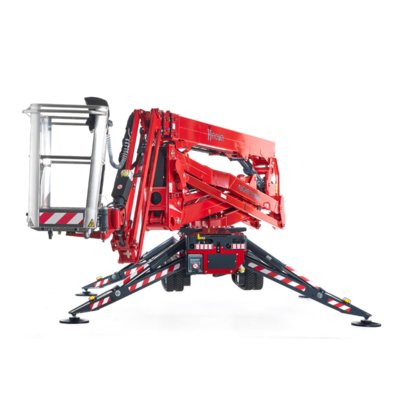

    The Hinowa Lightlift 20.10 is a tracked spider boom lift with a maximum platform height of 18.15-metres. It has a platform capacity of 230kg and a maximum working height of 20.15-metres, with an outreach of 9.7-metres. This spider boom is ideal for inspection, installation, cleaning, maintenance, and other work at heights. As it is available with either a diesel or lithium electric engine, you can use it for indoor and outdoor jobs.

    The Hinowa Lightlift 20.10 is compact and narrow, so you can use it for access in very confined areas. The tracks also offer excellent traction across rough and sloped terrain. When in place, you can widen the tracks to 1.09-metres for extra stability, and you can lower the four folding outriggers for further support, even if the surfaces are different levels.

    The articulating boom unfolds steadily from the stowed envelope, offering excellent reach and up-and-over access. You can rotate the jib 360° and rotate the basket 124° for unrestricted accessibility in the work field.

    Battery Powered
    Safety Footwear
    Diesel
    Gloves
    Head Protection
    Safety Harness
    Training Required
    Large Van or Truck
  • Capacity platform: 230kg
    Max. Working Height: 20.15m
    Max. Horizontal Working Outreach: 9.70m
    Transport Length: 5.01m
    Transport Length Without Basket and Rotated Support: 4.39m
    Transport Height With Plates Installed: 1.99m
    Standard Basket Dimensions: 1335x690x1100mm
    Basket Rotation: 124°(+/-62°)
    Maximum Stabilization Angle: 15°
    Max Slope Allowed in Travel Mode: 16°/28.7%
    Total Weight: 2,970 kg diesel | 3,000 kg Lithium-ion
    Diesel Engine: KUBOTA Z602
    Electric Motor: 2.2kW-230V-50Hz / 2.2kW-110V-50Hz
    Max. Travel Speed - Diesel Version: 0.5 - 1.3 - 2.5 Km/h
    Lithium-ion Powered: 7.7 kWh
    Max. Travel Speed - Lithium-ion Version: 0.83 - 1.6 Km/h
    Undercarriage Width Open/Close: 795 - 1095mm
    Max Ground Pressure on Stabilizer: 2150daN - 3.04daN/cm2
    Stabilization Area: 2922x2925mm

    Please note: This product description and specification is based on the model most widely stocked across our network of partner stores. Alternative brands of equivalent specification may be supplied based on location and availability.
