11m JLG E300AJP Hire
Electric Articulated Boom Lift

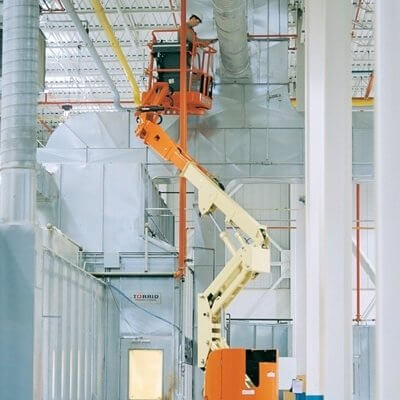

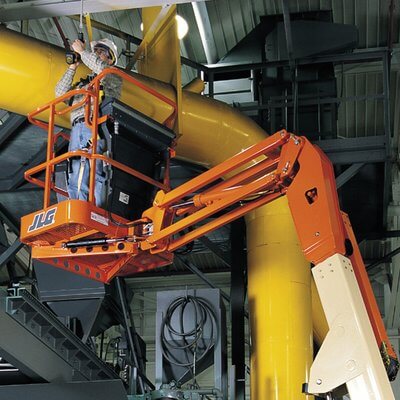

The JLG E300AJP is an articulating boom lift with a maximum platform height of 8.97-metres. It can lift two people indoors and one person outdoors. This boom lift offers a maximum working height of 10.97-metres, a horizontal reach of 6.12-metres, and a lifting capacity of 230kg. It is ideal for inspection, installation, cleaning, maintenance, finishing, and other work at heights.

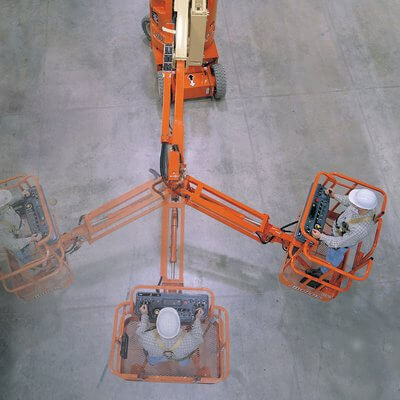

This articulated boom lift overs incredible up-and-over reach. It has a tight turning radius of 3.10-metres and has a minimal tail swing, so they are easy to manoeuvre and are great for confined spaces. You can also rotate the cage 180°, offering incredible access and visibility.
The JLG E300AJP is electrically powered, so it is quiet and does not produce any emissions. It is perfect for indoor and sensitive workspaces. The chassis is compact, so you can navigate through doorways, aisles, and around obstacles safely and with ease.
-
Batteries 8 x 6V, 305 A-h Electrical System 48 Volts DC Drive Speed - Platform Lowered 4.80 km/h / 3 mph Gradeability - 2WD 25% Platform Capacity 230 kg / 507.1 lb Platform Capacity - Unrestricted 226.80 kg / 500 lb Swing 350 Degrees Swing Type Non-Continuous Turning Radius - Outside 3.10 m / 10.2 ft Jib - Range of Articulation 144 Degrees Ground Clearance 0.1 m / 4 in. Machine Height 2.01 m / 6.6 ft Machine Length 5.74 m / 18.8 ft Machine Width 1.22 m / 4 ft Platform Dimension A 0.76 m / 2.5 ft Platform Dimension B 1.22 m / 4 ft Platform Height 8.97 m / 29.4 ft Tailswing 0 m / 0 in. Tire Size (ANSI EXPORT & CSA) 25 x 7 x 12 Non-marking Wheelbase 1.65 m / 5.4 ft Working Height 10.97 m / 36 ft Working Outreach 6.77 m / 22.2 ft Horizontal Jib Rotation 180 Degrees Horizontal Outreach 6.12 m / 20.1 ft Up and Over Height 4.01 m / 13.2 ft Capacity - Hydraulic Reservoir 10.98 L / 2.9 gal. Machine Weight (ANSI Export & CSA) 6985 kg / 15399.3 lb Machine Weight 6990 kg / 15410.3 lb Machine Weight (CE & GOST) 7100 kg / 15652.8 lb Please note: This product description and specification is based on the model most widely stocked across our network of partner stores. Alternative brands of equivalent specification may be supplied based on location and availability.
-
